UCFC 206

Bore diameter

Trademark

reset

back to list

UCFC 206

UCFC 200

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

Identification numbers

ARTNR

503722

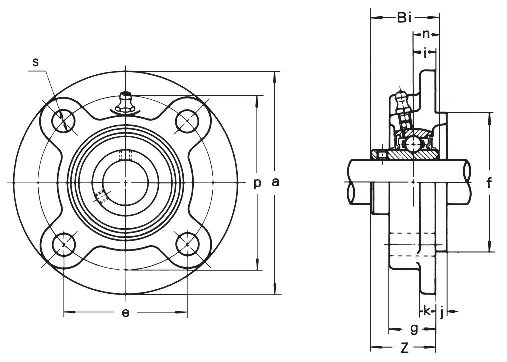

Measurement

Bore diameter:

30

a (mm):

125

p (mm):

100

e (mm):

70,7

i (mm):

10

g (mm):

23

s (mm):

12

j (mm):

8

k (mm):

8

f (mm):

80

Z (mm):

32,2

Bi (mm):

38,1

n (mm):

15,9

Bolt size:

M10

Load ratings Insert dyn. C (kN):

19,45

Load ratings Insert stat. C0 (kN):

11,25

Weight (kg):

1,3

Product:

Flanged bearing unit

Product series:

UCFC 200

Material:

Cast iron

Fixing:

Set-screw locking

Trademark:

ASK
