UFL 002

UFL 000

Specification

Identification numbers

ARTNR

502033

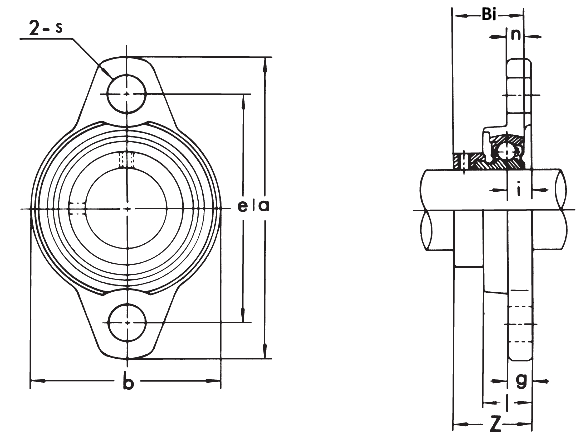

Measurement

Bore diameter:

a (mm):

e (mm):

i (mm):

6,5

g (mm):

6,5

l (mm):

s (mm):

b (mm):

Z (mm):

20,5

Bi (mm):

18,5

n (mm):

4,5

Bolt size:

Load ratings Insert dyn. C (kN):

5,6

Load ratings Insert stat. C0 (kN):

2,8

Weight (kg):

0,1

Product:

Flanged bearing unit

Product series:

UFL 000

Material:

Zincalloy die-casting

Fixing:

Eccentric collar locking

Trademark:

ASAHI

Take-up
Heavy duty
Set-screw locking
Insert UC 300

Available on request with inserts of series UK and KH. Covers are possible as special version.
The conventional housing tolerances are valid for all shown housing dimensions.
All cast housing tolerances are nominal sizes and the conventional cast tolerances must be added.
