G 8-525

G-525: Spherical plain bearings maintenance free

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

Identification numbers

ARTNR

900345

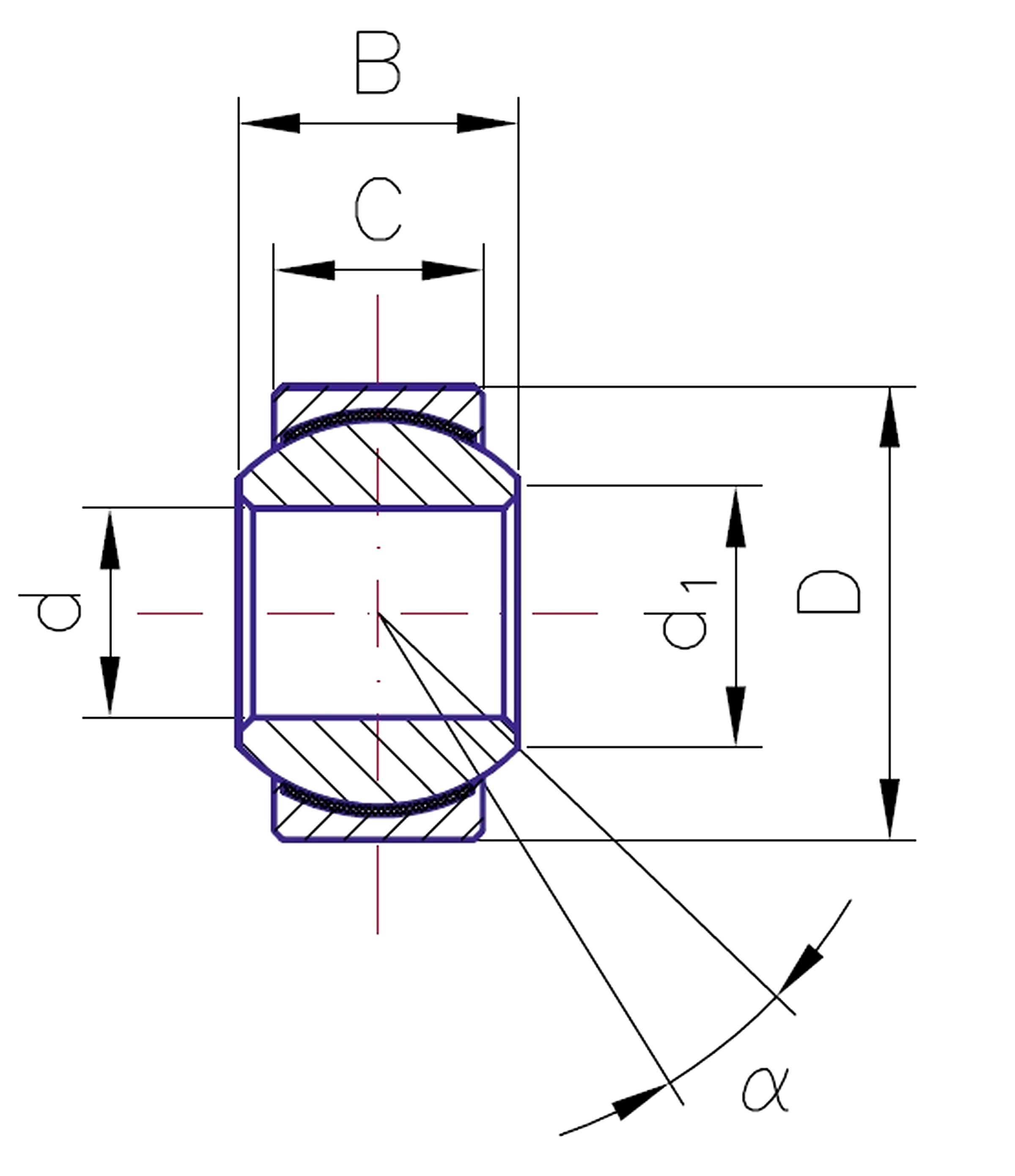

Measurement

d (Inch):

0,3125

d1 ~ (Inch):

0,4

B (Inch):

0,437

C (Inch):

0,355

D (Inch):

0,6875

Load rating stat. C0 (kN):

Load rating dyn. C (kN):

Tilt angle α (°):

Weight (kg):

0,016

Product series:

G-525: Spherical plain bearings maintenance free

Dimension series:

Special version

Product:

Spherical plain bearings

Maintenance/Friction pairing:

Maintenance free steel/PTFE

Units of measurement:

Inch

Inner ring: Antifriction bearing steel, hardened, ground and polished, sliding face hard chromium plated

Outer ring: Stainless steel, lined with an antifriction film consisting of PTFE with metal fabric

Bearing clearance: Reduced bearing clearance
