GAL 10-DO

GAR-DO: Rod ends dimension series E, male thread, maintenance required

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

Identification numbers

ARTNR

503344

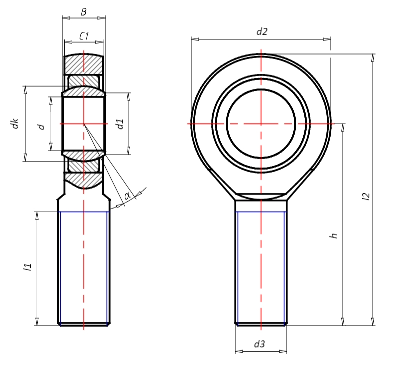

Measurement

d (mm):

d3 (mm):

M10

B (mm):

C1 max. (mm):

7,5

d1 ~ (mm):

d2 max. (mm):

dk (mm):

h (mm):

l1 min. (mm):

l2 max. (mm):

Load rating static C0 (kN):

Tilt angle alpha (°):

Weight (kg):

0,044

Product series:

GAR-DO: Rod ends dimension series E, male thread, maintenance required

Dimension series:

Dimension series E

Bearing:

Plain bearing

Sealing:

Without seal

Maintenance/Friction pairing:

Maintenance required steel/steel

Metric thread:

Male left hand thread

Material:

Standard

Inner ring: Antifriction bearing steel, hardened, ground.

Outer ring: Antifriction bearing steel, hardened, ground. Outer ring is split for assembly of inner ring.

Housing: Made of steel, galvanized and chromated. The spherical bearing is pressed into the housing and caulked at both sides.

Lubrication nipple: without lubricating nipple
