GAL 20-UK

GAR-UK: Rod ends dimension series E, male thread, maintenance free

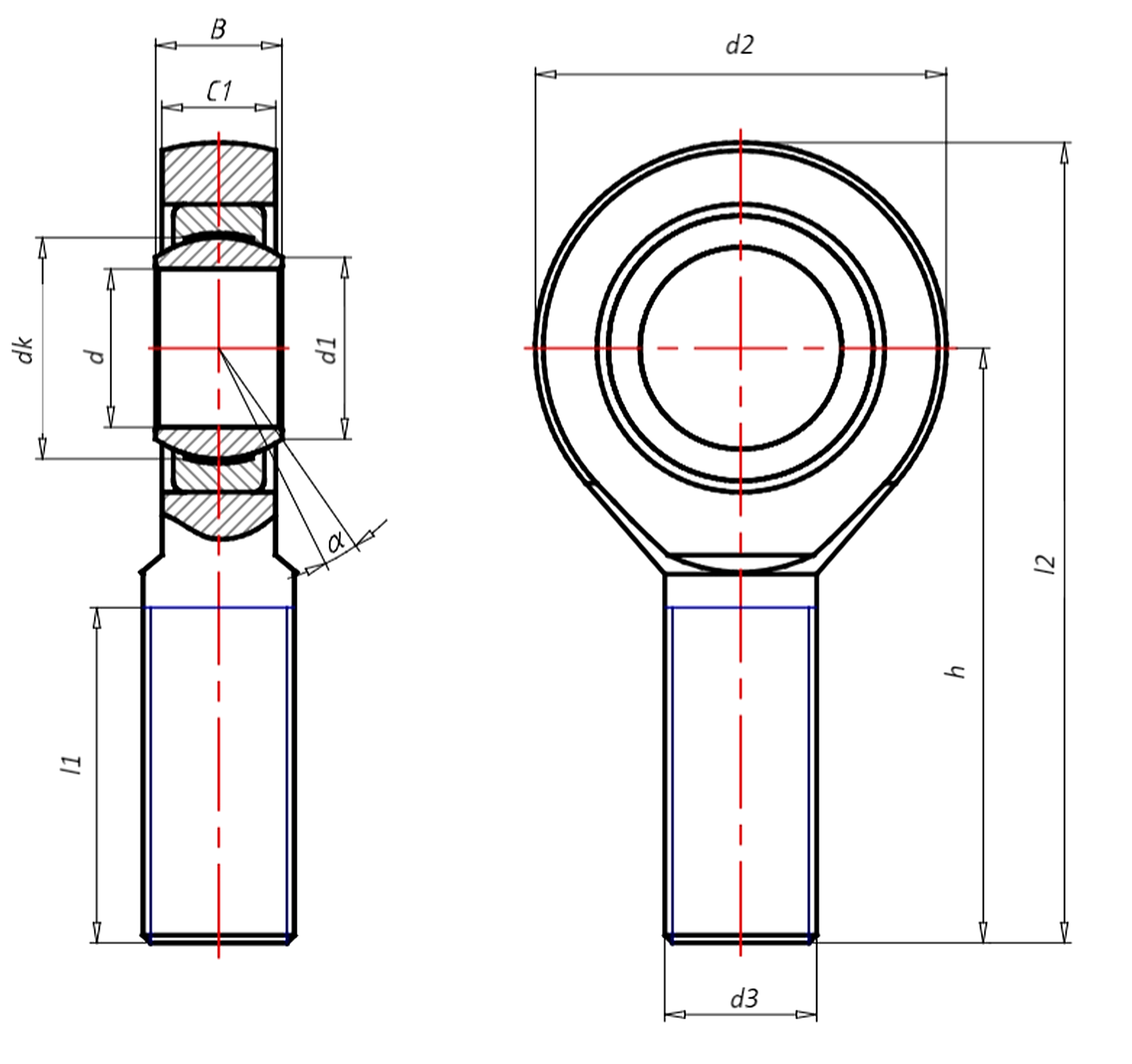

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

Specification

Identification numbers

ARTNR

503458

Measurement

d (mm):

d3 (mm):

M20x1,5

B (mm):

C1 max. (mm):

13,5

d1 ~ (mm):

d2 max. (mm):

dk (mm):

h (mm):

l1 min. (mm):

l2 max. (mm):

107

Load rating static C0 (kN):

Tilt angle alpha (°):

Weight (kg):

0,28

Product series:

GAR-UK: Rod ends dimension series E, male thread, maintenance free

Dimension series:

Dimension series E

Bearing:

Plain bearing

Sealing:

Without seal

Maintenance/Friction pairing:

Maintenance free steel/PTFE

Metric thread:

Male left hand thread

Material:

Standard
