KA 30-DV

Bore diameter ( d (mm) )

Thread pitch ( d3 (mm) )

Width ( B (mm) )

Metric thread

Material

reset

back to list

KA 30-DV

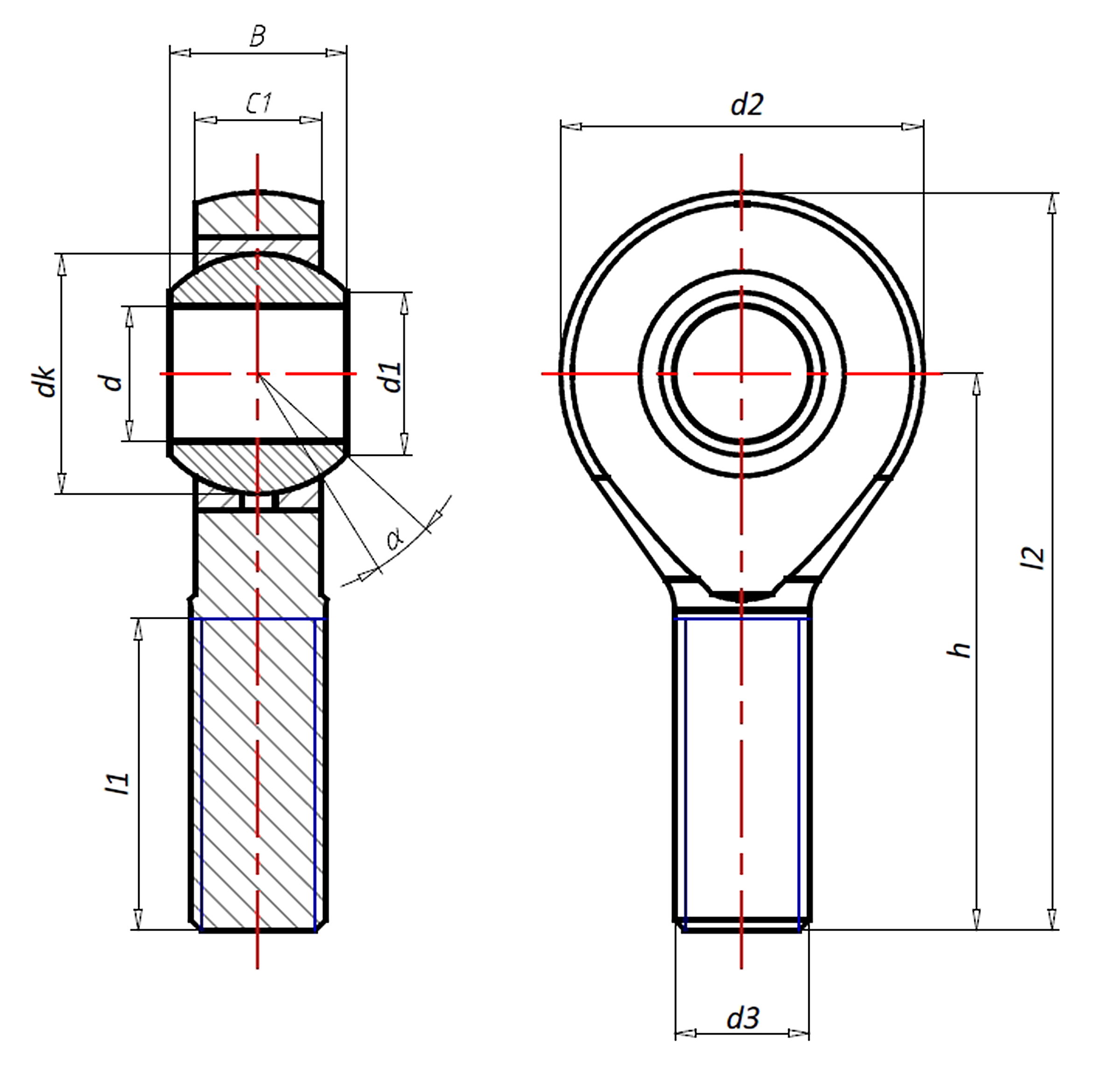

KA-D: Rod ends dimension series K, male thread, maintenance free

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

Specification

Identification numbers

ARTNR

101973

Measurement

d (mm):

d3 (mm):

M30x2

B (mm):

C1 (mm):

d1 ~ (mm):

34,8

d2 max. (mm):

dk (mm):

50,8

h (mm):

110

l1 min. (mm):

l2 ~ (mm):

145,5

Load rating static C0 (kN):

107

Load rating dyn. C (kN):

165

Tilt angle alpha (°):

Weight (kg):

1,06

Product series:

KA-D: Rod ends dimension series K, male thread, maintenance free

Dimension series:

Dimension series K

Bearing:

Plain bearing

Sealing:

Without seal

Maintenance/Friction pairing:

Maintenance free steel/PTFE

Metric thread:

Male right hand thread

Material:

Housing heat-treated

Inner ring: Antifriction bearing steel, hardened, ground and polished.

Outer ring: Steel, lined with an antifriction film consisting of PTFE.

Housing: Tempering steel (heat-treated), galvanized and chromated. The spherical bearing is pressed into the housing and caulked at both sides.
