GE 70-UK2RS

GE-UK: Spherical plain bearings dimension series E, maintenance free

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

Identification numbers

ARTNR

503645

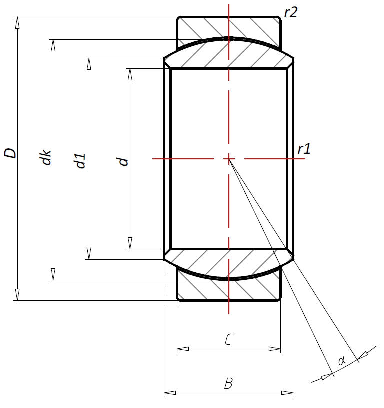

Measurement

d (mm):

d1 ~ (mm):

B (mm):

C (mm):

D (mm):

105

dk (mm):

r1 min. (mm):

r2 min. (mm):

Load rating static C0 (kN):

880

Tilt angle (°):

Weight (kg):

1,55

Product series:

GE-UK: Spherical plain bearings dimension series E, maintenance free

Dimension series:

Dimension series E

Bearing:

Plain bearing

Sealing:

Without seal

Maintenance/Friction pairing:

Maintenance free steel/PTFE

Material:

Standard

Inner ring: Antifriction bearing steel, hardened, ground and polished

Outer ring: Steel, lined with PTFE. Outer ring is split for assembly of inner ring

Sealing: Sealing rings at both sides
