GUI 25-ZZ

GUI-ZZ: Spherical plain bearings with ball bearings

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

Identification numbers

ARTNR

900311

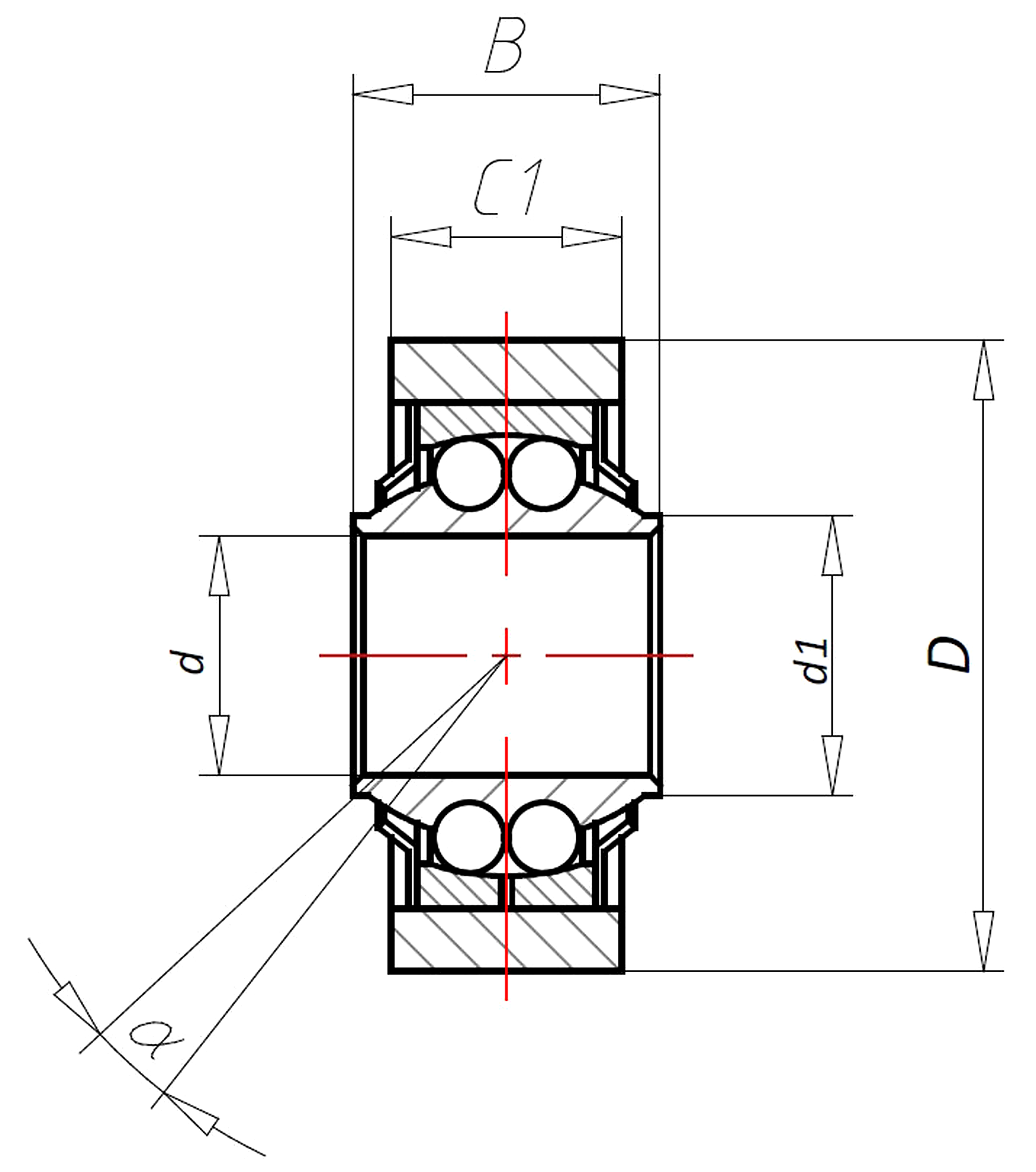

Measurement

d (mm):

D (mm):

C1 (mm):

B (mm):

d1 (mm):

29,8

Limiting speed max. (min-1):

550

Load rating bearing dyn. C (kN):

10,9

Load rating bearing static C0 (kN):

3,05

Tilt angle (°):

Weight (g):

210

Product series:

GUI-ZZ: Spherical plain bearings with ball bearings

Dimension series:

Connection dimensions acc. to dimension series K

Bearing:

Roller bearing

Rollings elements:

Balls

Interior construction:

Full complement

Maintenance/Friction pairing:

Low maintenance roller bearing

Material:

Standard

Sealing:

Covering disc
